Drum Dryers and Flakers

Drum dryers and flakers are used to dry slurry liquids into a cake by coating a liquid on a hot drum. After the cake has formed, the dried slurry can be flaked off of the drum. Our inventory of flaking rollers and drum dryers includes Blaw-Knox Buflovak drum dryers and double drum dryers.

FAQ :

What is the difference between a drum dryer and a drum flaker?

Drum dryers and drum flakers are related but serve distinct purposes in industrial processing. A drum dryer uses a heated rotating drum to remove moisture from slurry or liquid materials. The liquid is applied to the hot drum surface, moisture evaporates, and the resulting dried cake is scraped off as a thin sheet or powder. These machines are common in food processing (milk powder, baby food), chemical manufacturing, and agricultural applications where the goal is dehydration and drying.

A drum flaker, by contrast, is designed to solidify molten or liquid materials into solid flakes by cooling them on a rotating drum surface rather than heating. The material is applied to a chilled drum, solidifies into a thin layer, and is then scraped off as uniform flakes. Common applications include waxes, resins, fats, fertilizers, and certain specialty chemicals. In practice, some machines are built to perform both functions depending on configuration, which is why the two are often grouped together in industrial equipment categories. When evaluating used equipment, buyers should confirm which function a specific unit was designed and configured for, as the internal drum temperature systems differ significantly between the two types.

What materials can be processed using drum dryers and drum flakers?

Drum dryers and drum flakers handle a wide range of materials across food, chemical, and industrial sectors. In food processing, drum dryers are widely used for potato flakes, cooked cereals, baby food, mashed potatoes, tomato paste, and dairy products like milk powder and whey. The thin-film drying method preserves nutritional content better than some other drying technologies, which makes drum drying attractive for heat-sensitive food products.

On the industrial and chemical side, drum flakers are commonly used for waxes, paraffins, fatty acids, resins, sulfur, urea, fertilizers, pigments, and various thermoplastic materials. Drum dryers in industrial settings handle slurries of chemicals, minerals, and pharmaceutical intermediates. The key requirement for any material is that it must be capable of forming a thin, adherent film on the drum surface, either as a liquid slurry for drying or as a melt for flaking. Viscosity, adhesion characteristics, and thermal sensitivity all factor into whether a given material is a good candidate for drum processing, and buyers sourcing used equipment should verify that the machine's drum material (stainless steel, for example) and surface finish are compatible with their specific product.

What configurations are available for drum dryers and drum flakers?

Drum dryers and drum flakers are manufactured in several configurations, each suited to different production requirements and material characteristics. The three most common types are single-drum, double-drum, and twin-drum designs. Single-drum units have one rotating drum and are typically used for materials that adhere well to the drum surface and can be fed from above or below. Double-drum dryers use two drums rotating toward each other with a feed nip between them, which works well for pastes and slurries of medium viscosity. Twin-drum configurations involve two drums rotating away from each other and are suited for lower-viscosity feeds.

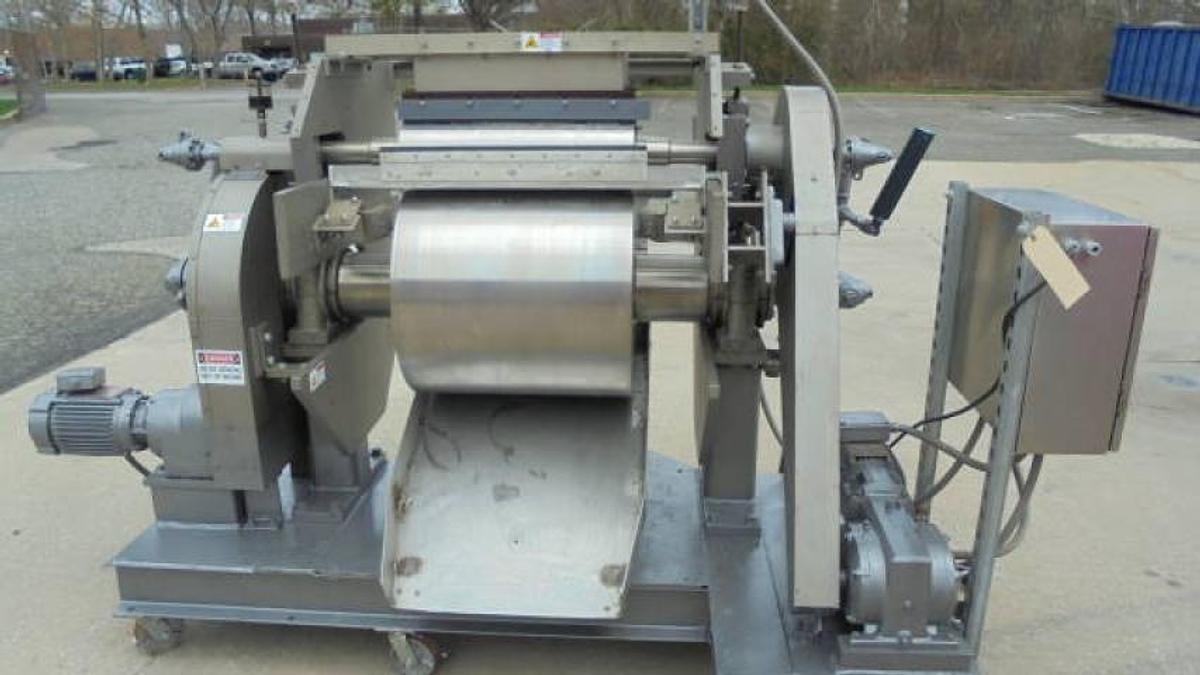

Beyond the drum count, buyers should pay attention to drum diameter and width, as these directly determine the available drying or flaking surface area and, by extension, the production throughput. A unit like a 24-inch by 24-inch stainless drum flaker, for example, is a compact machine suited for smaller batch runs or pilot-scale production. Larger industrial units can have drums several feet in diameter and many feet wide, capable of processing several tons of material per hour. Used equipment inventories often include a mix of sizes and configurations from manufacturers such as Blaw-Knox and Buflovak, so buyers have options depending on their space constraints and output targets.

Are used drum dryers and drum flakers a reliable option for industrial processing?

Used drum dryers and drum flakers can be highly reliable pieces of equipment, largely because these machines are built with heavy-gauge components designed for continuous industrial operation over many years. The drum itself, typically fabricated from cast iron or stainless steel, is engineered to withstand repeated thermal cycling and mechanical stress. Many units that appear on the used market have decades of service life remaining, particularly when they have been well maintained and operated within their design parameters.

The key to a successful used equipment purchase is thorough inspection before committing to buy. Reputable used equipment dealers will accommodate in-person inspections or video walkthroughs of the machine so buyers can assess the condition of the drum surface, bearings, drive components, scraper blades, and any associated steam or refrigeration systems. Buyers should also contact the original manufacturer to determine what level of parts support and technical documentation is available for the specific model and age of the machine, since parts availability can vary. Choosing a dealer with a long track record in process equipment is important, as they are more likely to have accurate condition information and to represent the equipment honestly. Used drum dryers and flakers are sold as-is, so the inspection process is the buyer's primary tool for evaluating reliability.

What should buyers inspect when evaluating a used drum dryer or drum flaker?

Evaluating a used drum dryer or drum flaker requires looking at both the mechanical and process-related components of the machine. The drum surface itself is the most critical element. Buyers should look for scoring, pitting, corrosion, or uneven wear on the drum face, as any of these conditions can affect film formation and product quality. The drum's roundness and concentricity matter as well, since an out-of-round drum will produce inconsistent flake thickness. Bearings, the drive system (gearbox, motor, chain or belt drives), and the doctor blade or scraper assembly should all be checked for wear and proper adjustment.

Beyond the mechanical components, buyers should assess the condition of the steam chest or cooling system, depending on whether the machine is a dryer or flaker. Steam connections, rotary joints, and any associated valves or condensate return systems are wear items that may need attention. The frame and structural components should be free of cracks or significant corrosion. Reputable dealers will typically offer in-person or video inspections, and some equipment may still be installed at an operating facility where it can be observed under production conditions. Keep in mind that most dealers do not have the production permits or infrastructure to run product through the machine during an inspection, so buyers should focus on mechanical condition and operating history rather than expecting a live product demonstration.

What are the typical capacity ranges for drum dryers and drum flakers?

Drum dryers and drum flakers span a wide range of production capacities, from small pilot-scale units to large continuous production machines. At the lower end, compact units with drum dimensions around 24 inches by 24 inches are suited for research and development, product trials, or small-batch specialty production. These smaller machines might process anywhere from a few kilograms to a few hundred kilograms of material per hour depending on the material and operating conditions.

At the industrial scale, large double-drum dryers and drum flakers can have drum widths of 10 feet or more and diameters of 4 to 6 feet, enabling throughputs of several tons per hour. The key variables that determine actual capacity for a given machine include drum surface area, drum rotation speed (RPM), the thickness of the film applied, the drying or cooling efficiency, and the physical properties of the material being processed. Buyers sourcing used equipment should match the drum dimensions and drive specifications to their required output, and should consult with a process engineer if they are uncertain about how a specific machine's capacity translates to their application. Used equipment listings typically include drum diameter and width as primary specifications, which are the starting point for capacity calculations.

What brands of drum dryers and drum flakers are commonly available on the used market?

Several well-established manufacturers have produced drum dryers and drum flakers over the decades, and their equipment appears regularly on the used market. Buflovak is one of the most recognized names in drum dryer and drum flaker manufacturing, with a long history of producing both single-drum and double-drum configurations for food, chemical, and industrial applications. Blaw-Knox is another prominent name, particularly known for heavy-duty industrial drum dryers used in chemical and mineral processing. Both brands built machines to demanding industrial standards, which is part of why their equipment retains value and utility well into its service life.

Other manufacturers that appear in used equipment inventories include APV, Stord, and various European manufacturers, though availability varies depending on the market and the time of search. When evaluating a used machine from any manufacturer, buyers should research the specific model to understand its design capacity, typical applications, and the availability of replacement parts such as doctor blades, rotary joints, and drive components. Contacting the manufacturer directly to inquire about parts support and technical documentation for older models is a step that experienced buyers rarely skip, since the age of the machine can significantly affect what support is available.

What is the typical price range for used drum dryers and drum flakers?

Pricing for used drum dryers and drum flakers varies considerably based on drum size, configuration, material of construction, age, and overall condition. Compact units with smaller drum dimensions, such as a 24-inch by 24-inch stainless drum flaker, will generally be priced lower than large double-drum industrial units with significantly more surface area and throughput capacity. Stainless steel construction commands a premium over cast iron because of its corrosion resistance and suitability for food-grade and pharmaceutical applications.

As a general frame of reference, small to mid-size used drum flakers and dryers in good working condition can range from tens of thousands of dollars up to several hundred thousand dollars for large, well-maintained industrial units from recognized manufacturers. The condition of the drum surface, the completeness of the machine (including controls, scrapers, and associated systems), and whether the unit was recently in production all influence the final price. Buyers should also factor in the full landed cost of the equipment, including rigging, crating or packaging, freight, and any reconditioning work needed after delivery, as these costs can be substantial for heavy industrial machinery.

How does shipping and logistics work when purchasing a used drum dryer or drum flaker?

Shipping a used drum dryer or drum flaker involves more planning than typical freight because these are heavy, precision machines that require careful handling to avoid damage in transit. The drum surface in particular is susceptible to damage if the machine is not properly supported and secured during loading, transport, and unloading. Dealers will typically crate or skid the equipment to protect it, and the level of packaging required directly affects the shipping cost. Buyers should ask the dealer specifically about how the machine will be packaged and what is included in the quoted shipping price.

For larger machines, rigging is a significant cost factor. Heavy-duty forklifts, cranes, or specialized rigging crews are often required to safely load and unload drum dryers and flakers, particularly units with large cast iron or stainless steel drums that can weigh several tons. Buyers should request a detailed breakdown of all costs involved, including rigging at the origin, freight, and rigging at the destination, to understand the full landed cost before finalizing a purchase. International shipments add customs, duties, and compliance documentation to the equation. Most used equipment dealers require full payment before the machine ships, so buyers should have financing or funds in place before the transaction is completed.

What certifications or standards should buyers look for in used drum dryers and drum flakers?

Drum dryers and drum flakers used in food, pharmaceutical, or chemical processing may be subject to a range of industry standards and regulatory requirements depending on the application and jurisdiction. For food-grade applications, buyers should look for machines constructed from materials that meet FDA or equivalent food-contact standards, with stainless steel drums and product-contact surfaces being the typical requirement. Machines used in pharmaceutical manufacturing may need to comply with cGMP (current Good Manufacturing Practice) guidelines, which affect surface finish, cleanability, and documentation requirements.

For pressure-bearing components such as steam chests (used in drum dryers), compliance with ASME Boiler and Pressure Vessel Code or equivalent standards is relevant, and buyers should ask whether the original pressure vessel documentation is available for the unit. Electrical components should comply with applicable national electrical codes. It is worth noting that used equipment is sold as-is, and the original certifications or documentation may or may not be available depending on the age of the machine and how it was decommissioned. Buyers with strict compliance requirements should plan for a third-party inspection and, where necessary, recertification of pressure components before putting the machine into service. Consulting with the original manufacturer about the specific model's design standards is a practical step for buyers in regulated industries.
