FAQ :

What is a shell and tube heat exchanger and how does it work?

A shell and tube heat exchanger is a type of heat transfer equipment consisting of a large cylindrical shell that houses a bundle of smaller tubes running through its interior. One fluid flows through the tubes (the tube side), while a second fluid flows around the outside of those tubes within the shell (the shell side). The two fluids never mix directly. Instead, heat transfers through the tube walls from the hotter fluid to the cooler one. Baffles inside the shell direct the shell-side fluid across the tube bundle in a back-and-forth pattern, which increases turbulence and improves the rate of heat transfer significantly.

This design makes shell and tube heat exchangers exceptionally well-suited for handling high pressures, high temperatures, and large volumetric flow rates. They are among the most mechanically rugged heat exchanger configurations available, which is a big part of why they dominate industrial processing. Because the tube bundle can often be removed from the shell, cleaning and inspection are relatively straightforward compared to other heat exchanger types. The basic operating principle has remained consistent for well over a century, and the design continues to be refined through standards like those published by TEMA (Tubular Exchanger Manufacturers Association), which govern everything from tube pitch and baffle spacing to allowable stress levels in the shell and tube sheets.

What industries commonly use shell and tube heat exchangers?

Shell and tube heat exchangers appear across an unusually wide range of industries, which is one reason they are the most commonly specified heat exchanger type in industrial settings. The oil and gas sector relies on them heavily for crude oil preheating, gas cooling, and condensing applications. Chemical processing plants use them to control reaction temperatures and recover heat between process streams. Power generation facilities use large shell and tube units as condensers and feedwater heaters. The food and beverage industry depends on them for pasteurization, product cooling, and heating of viscous materials like shortening and edible oils. Pharmaceutical manufacturers use sanitary-grade stainless steel versions to meet strict hygiene and cleanability requirements.

Beyond those core sectors, shell and tube heat exchangers are found in HVAC systems, pulp and paper mills, refrigeration systems, marine applications, and wastewater treatment facilities. The versatility of the design allows engineers to configure units for almost any combination of fluids, temperatures, and pressures. Used shell and tube heat exchangers from these industries are frequently available on the secondary market after a plant decommissions equipment, upgrades to a larger unit, or changes its process. Buyers sourcing used units should identify the previous service conditions of the exchanger, including the fluids handled and operating pressures, to confirm suitability for their intended application.

What materials are shell and tube heat exchangers made from, and which is best for my application?

The most common construction materials for shell and tube heat exchangers are stainless steel (grades 304 and 316L), carbon steel, copper alloys, titanium, and duplex stainless steels. Carbon steel is cost-effective and widely used in applications where the process fluids are non-corrosive, such as water-to-water or steam-to-water service in industrial utilities. Stainless steel, particularly 316L, offers significantly better corrosion resistance and is the standard choice for food, beverage, dairy, and pharmaceutical applications where sanitary construction and CIP (clean-in-place) compatibility are required. Titanium is specified for highly corrosive environments, including seawater cooling and certain aggressive chemical services, and while it carries a higher material cost, its corrosion resistance in those environments is unmatched.

Selecting the right material depends on four main factors: the chemical compatibility of the material with both process fluids, the operating temperature range, the pressure rating required, and any regulatory or sanitary standards that apply to the industry. For example, a food processing plant handling fats and oils at elevated temperatures would typically require stainless steel construction with a smooth internal finish, while a petrochemical plant cooling a non-corrosive hydrocarbon stream might use carbon steel without issue. When purchasing a used shell and tube heat exchanger, it is worth verifying the actual material of construction through documentation or physical inspection, since the grade of stainless steel or the alloy used in the tube bundle directly affects whether the unit is appropriate for a new application.

What is the typical price range for used shell and tube heat exchangers?

Pricing for used shell and tube heat exchangers varies considerably depending on size, material of construction, design pressure, and overall condition. Smaller pilot-scale or laboratory units can sell for a few hundred to a few thousand dollars. Mid-range industrial units in carbon steel, sized for moderate flow rates and pressures, typically fall somewhere between $2,000 and $20,000 on the used equipment market. Larger, higher-pressure units in stainless steel, titanium, or duplex alloys, or those built to ASME code for pressure vessel service, can command prices well into the $50,000 to $100,000 range or beyond, depending on specifications and condition.

One of the primary advantages of purchasing used shell and tube heat exchangers is the significant cost savings compared to sourcing a comparable unit built to order. Lead times for fabricated heat exchangers can run from several weeks to many months depending on material availability and shop capacity, so a used unit in good condition can also solve urgent timeline problems. Buyers should factor in not just the purchase price but also any reconditioning costs, shipping and rigging expenses, and potential costs to adapt the unit to their piping connections. Getting a clear picture of the total landed cost before committing to a purchase is important, particularly for larger units where freight and rigging can add meaningfully to the overall expenditure.

How do I determine the right shell and tube heat exchanger for my specific application?

Selecting the correct shell and tube heat exchanger starts with a thermal and hydraulic analysis of the application. The two most important thermal parameters are the required heat duty (expressed in BTU/hr or kW) and the Log Mean Temperature Difference (LMTD), which reflects the effective driving force for heat transfer between the two fluid streams. From those values, engineers calculate the required heat transfer area using the overall heat transfer coefficient (U-value), which depends on the fluid properties, flow velocities, and fouling tendencies of both streams. Pressure drop constraints on each side of the exchanger also influence the tube diameter, tube length, number of passes, and baffle configuration. TEMA standards provide a widely accepted framework for classifying exchangers by service severity (Class R for severe, Class C for general commercial, Class B for chemical service) and for specifying minimum design requirements.

When evaluating a used shell and tube heat exchanger for a specific application, buyers should gather as much documentation as possible, including the original data sheet, ASME nameplate information, material certifications, and any maintenance or inspection records. Confirming the design pressure and temperature ratings, the tube and shell materials, the number of tube passes, and the shell diameter and tube count allows a process engineer to assess whether the unit has sufficient heat transfer area for the intended duty. If the original data sheet is unavailable, a reputable used equipment dealer should be able to provide physical measurements and any available documentation. In some cases, a third-party inspection or engineering review is a worthwhile investment before committing to a purchase, particularly for high-pressure or sanitary applications.

What TEMA and ASME standards apply to shell and tube heat exchangers?

TEMA, the Tubular Exchanger Manufacturers Association, publishes the industry-standard specification for shell and tube heat exchanger design and fabrication. TEMA standards define mechanical design requirements including tube sheet thickness, baffle design, nozzle sizing, and tolerances, and they classify exchangers into three categories based on service severity. Class R covers the most demanding services, typically found in petroleum refining and heavy chemical processing. Class B applies to general chemical process service, and Class C covers the least severe commercial and general process applications. Specifying TEMA class ensures that buyers and sellers are communicating on a consistent technical basis when describing the design intent of a unit.

ASME (American Society of Mechanical Engineers) certification under Section VIII of the Boiler and Pressure Vessel Code applies when the exchanger is designed to operate under internal pressure above certain thresholds, which covers the vast majority of industrial shell and tube heat exchangers. An ASME-stamped unit has been fabricated and inspected to meet specific code requirements, and the nameplate on the unit records the maximum allowable working pressure (MAWP), design temperature, and the certifying inspector's information. For used heat exchangers, the presence of an intact ASME nameplate is an important indicator of the unit's design pedigree. Buyers in the oil and gas, chemical, and pharmaceutical industries should confirm that any used unit they purchase carries the appropriate ASME stamp for their operating conditions, and they may want to consult with a pressure vessel inspector if there is any uncertainty about the unit's continued fitness for pressure service.

What should I inspect when buying a used shell and tube heat exchanger?

A thorough inspection of a used shell and tube heat exchanger should cover both the mechanical condition of the unit and the documentation supporting its design and service history. On the mechanical side, the key areas to examine are the condition of the tube bundle (looking for plugged, corroded, or leaking tubes), the integrity of the tube sheets and baffles, the condition of the shell and channel heads, the state of any gaskets or seals, and the condition of nozzles and flanges. If the tube bundle is removable, pulling it for visual inspection gives a much clearer picture of internal fouling, corrosion, or erosion than an external examination alone. Sellers who specialize in used process equipment will typically accommodate in-person inspections or provide detailed video walkthroughs of the unit for buyers who cannot travel to the location.

Beyond the physical inspection, buyers should request whatever documentation is available, including the original fabrication data sheet, ASME nameplate details, material certifications, and any records of previous hydrostatic testing, tube plugging, or retubing. Understanding the previous service conditions is equally important: a unit that handled clean water service is in a very different condition than one that processed a fouling or corrosive fluid for years. Some used equipment may still be installed and operating at a facility, which can allow for an inspection while the unit is in service. Keep in mind that most used equipment dealers do not have the permitting or production infrastructure to run full operational tests, so the inspection focuses on physical condition and documentation rather than live performance testing. Buyers should plan accordingly and factor any uncertainty into their evaluation.

What sizes and configurations of used shell and tube heat exchangers are typically available?

Used shell and tube heat exchangers are available across an extremely wide range of sizes, from compact pilot-plant units with shell diameters of a few inches and heat transfer areas measured in square feet, up to large industrial exchangers with shell diameters exceeding 60 inches and surface areas of thousands of square feet. The available inventory at any given time reflects what has recently come off-line from industrial facilities, so the selection is always changing. Buyers searching the used market will encounter single-pass and multi-pass tube configurations, fixed tube sheet designs, U-tube bundles, and floating head designs, each with different advantages for specific applications and different implications for maintenance and cleaning access.

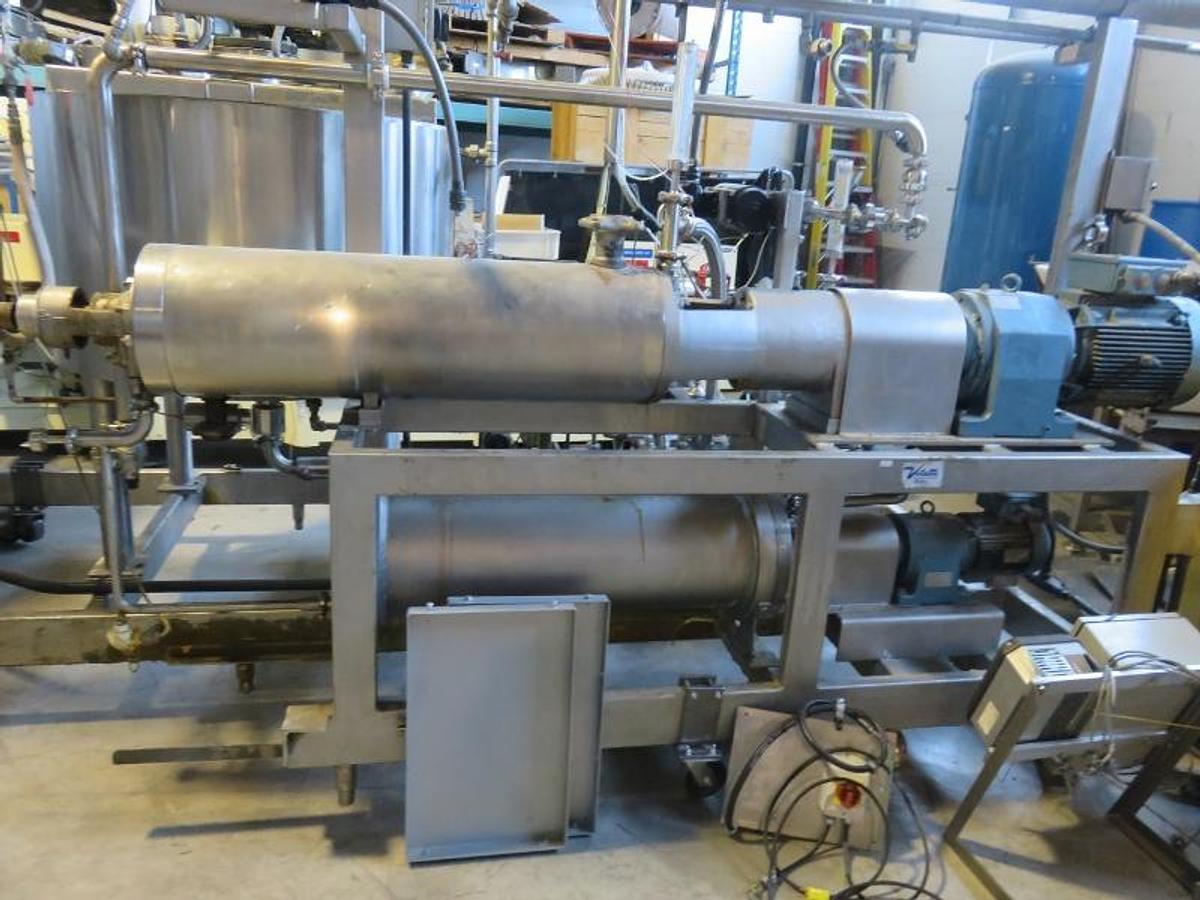

Beyond shell diameter and tube length, configuration variables include the number of shell passes and tube passes, the tube diameter and wall thickness, the tube pitch and layout pattern (triangular or square), and the baffle cut and spacing. Specialty configurations also appear on the used market, such as kettle-type reboilers used in distillation service, falling film evaporators, and scraped-surface or votator-style units designed for high-viscosity or crystallizing products. Stainless steel sanitary units built for food, dairy, or pharmaceutical service are a distinct subcategory with their own design features, including polished internal surfaces and hygienic connections. Buyers with specific process requirements should work with a knowledgeable used equipment dealer who can help match available inventory to the application rather than simply purchasing the nearest available size.

How are used shell and tube heat exchangers shipped, and what should buyers expect for freight costs?

Shipping a used shell and tube heat exchanger involves considerations that go well beyond standard freight, particularly for larger units. Smaller exchangers may be palletized and shipped via LTL (less-than-truckload) freight, but the packaging must be adequate to prevent damage to nozzles, flanges, and the tube bundle during transit. Larger units typically require custom crating or skidding, and the level of packaging directly affects both the protection of the equipment and the total freight cost. Buyers should ask the selling dealer specifically how the unit will be packaged and what that packaging cost includes, since some dealers quote equipment prices separately from crating and rigging.

For heavy or oversized shell and tube exchangers, loading at the origin and unloading at the destination may require a crane or specialized rigging equipment, which adds cost on both ends of the shipment. Full truckload or flatbed shipping is common for large units, and in some cases an oversize load permit may be required depending on the dimensions and weight. Buyers should request a detailed freight quote that covers packaging, loading rigging, transportation, and destination unloading before finalizing a purchase, since these costs can be substantial relative to the equipment price for large units. Understanding the total landed cost, including all freight and rigging charges, is essential for making an accurate comparison between available units at different locations.

Are used shell and tube heat exchangers easy to clean and maintain?

One of the practical advantages of the shell and tube design is that it was engineered with maintenance access in mind. In a removable bundle design (U-tube or floating head), the entire tube bundle can be pulled from the shell for mechanical cleaning, inspection, and retubing if necessary. Fixed tube sheet designs do not allow bundle removal but still permit mechanical or chemical cleaning of the tube interiors by rodding or high-pressure water jetting through the tube ends. The shell side is generally cleaned by circulating a cleaning solution or by opening the shell and manually cleaning the baffle and tube exterior surfaces. The ease of cleaning depends significantly on the tube pitch and layout: square pitch tube layouts allow cleaning lanes between tubes on the shell side, while triangular pitch layouts provide more heat transfer area but restrict shell-side mechanical cleaning access.

For sanitary applications in food, dairy, or pharmaceutical processing, shell and tube heat exchangers are frequently designed for CIP (clean-in-place) service, meaning cleaning solutions can be circulated through the unit without disassembly. When evaluating a used heat exchanger for sanitary service, buyers should confirm that the internal surface finish meets the required Ra (roughness average) specification and that all wetted materials are compatible with the cleaning chemicals used in the plant. General maintenance tasks for shell and tube exchangers include periodic inspection of gaskets and seals, monitoring for tube leaks (which can be detected through pressure testing or tracer methods), and tracking pressure drop trends over time as an indicator of fouling buildup. A unit that has been well maintained and properly documented represents a much lower risk purchase than one with an unknown service history.
